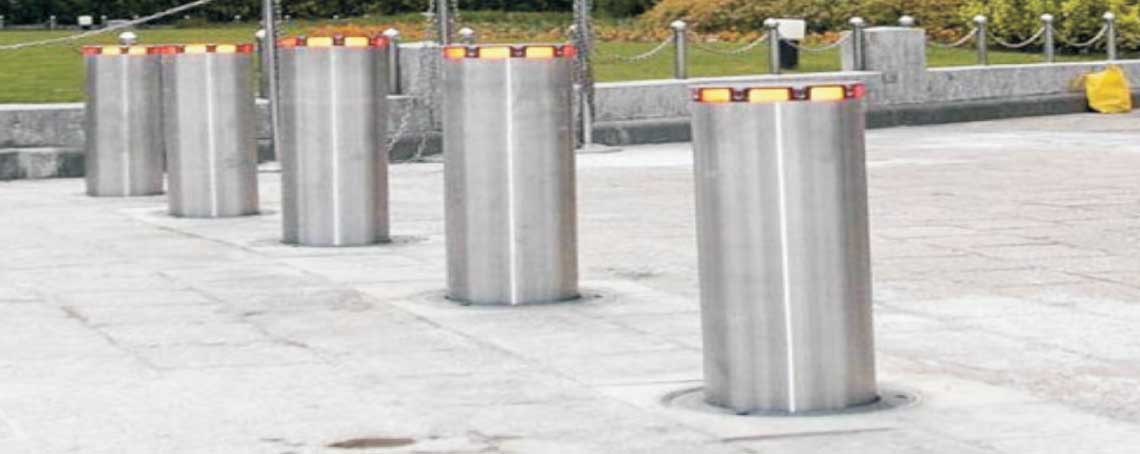

The automatic rising bollard is a retractable bollard, hydraulically powered barricade which has a lift height of 600mm. Automatic rising bollards can be installed in a variety of different applications. They are robust and a high security method of preventing vehicular access.
Typically rising bollards are installed in commercial environments but they can also be an added security in high risk residential areas. Rising bollards are great alternative to fixed posts, automatic electric gates and barriers. They allow regulation of traffic in specific areas with high vehicle flow such as pedestrian areas, parking.
![]() |
|
| Moduel No | INT-HB01 |
| Rising Time | 3.5s |
| Dropping Time | 3s |
| Dimension | ϕ 400*1105mm |
| Height | 600mm |
| Overheating Protection | 700 C |
| Thickness | 6mm,8mm,10mm,12mm |
| Height underground | 1105mm |
| Lifting force | 130kg |
| Protection rate | IP68 |
| Cylinder Diameter | 219MM,273,324MM |
![]() |
|
| Moduel No | INT-HB02 |
| Rising Time | 3.5s |
| Dropping Time | 3s |
| Dimension | ϕ 400*830mm |
| Height | 600mm |
| Overheating Protection | 1300 C |
| Thickness | 6mm |
| Height underground | 830mm |
| Lifting force | 150kg |
| Protection rate | IP68 |
| Cylinder Diameter | 219MM |
![]() |
|
| Moduel No | INT-S7 |
| Rising Time | 2.7s |
| Dropping Time | 2.2s |
| Dimension | ϕ 400*1105mm |
| Height | 600mm |
| Overheating Protection | 1300 C |
| Thickness | 66mm |
| Height underground | 1105mm |
| Lifting force | 150kg |
| Protection rate | IP68 |
| Cylinder Diameter | 219MM |
![]() |
|
| Moduel No | INT-R8 |
| Rising Time | 2.7s |
| Dropping Time | 2.2s |
| Dimension | ϕ 400*1105mm |
| Height | 600mm |
| Overheating Protection | 1300 C |
| Thickness | 6mm |
| Height underground | 1105mm |
| Lifting force | 150kg |
| Protection rate | IP68 |
| Cylinder Diameter | 219MM |
