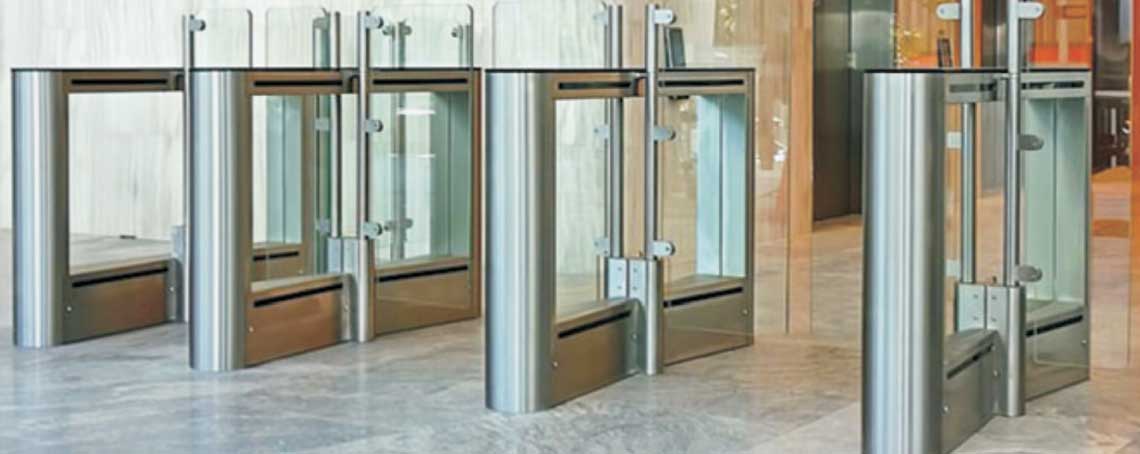

Optical swing turnstile is designed for pedestrian access control in restricted areas, the swing barrier optical turnstile combines the security of a physical barrier turnstile with the sophistication of optical beam detection to prevent tailgating and unauthorized entry with ease. It can be integrated with virtually all access control software and hardware while enjoying the convenience of dedicated inputs for fire and life safety systems. With narrow stainless steel cabinet design. It can provide handicapped lane width.
 |
|
| Module No | INT-B501 |
| Size | 1200x280x980mm |
| Material | 304 stainless steel |
| Access width | 600 mm (Maximum 1400 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 6 million times |
| The material thickness | 1.2mm/1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B502 |
| Size | 1400x190x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 1000mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.2mm/1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B503 |
| Size | 1200x280x1020mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 850 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.2mm / 1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B504 |
| Size | 1400x180x1000mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B506 |
| Size | 168x168x1050mm |
| Material | 304 stainless steel |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 5 million times |
| The material thickness | 1.2 mm/ 1.5 mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B507 |
| Size | 200x200x980mm |
| Material | 304 stainless steel, acrylic |
| Access width | 900 mm (Maximum 100mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.2 / 1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B508 |
| Size | 141x1000mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 500-700mm standard 700-1000mm customized |
| Input voltage | 100V ~ 240V |
| Drive motor | Brushless DC motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
 |
|
| Module No | INT-B512 |
| Size | 1500x180x980mm |
| Material | 304 stainless steel |
| Access width | 600mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V Brushless motor, low noise |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
