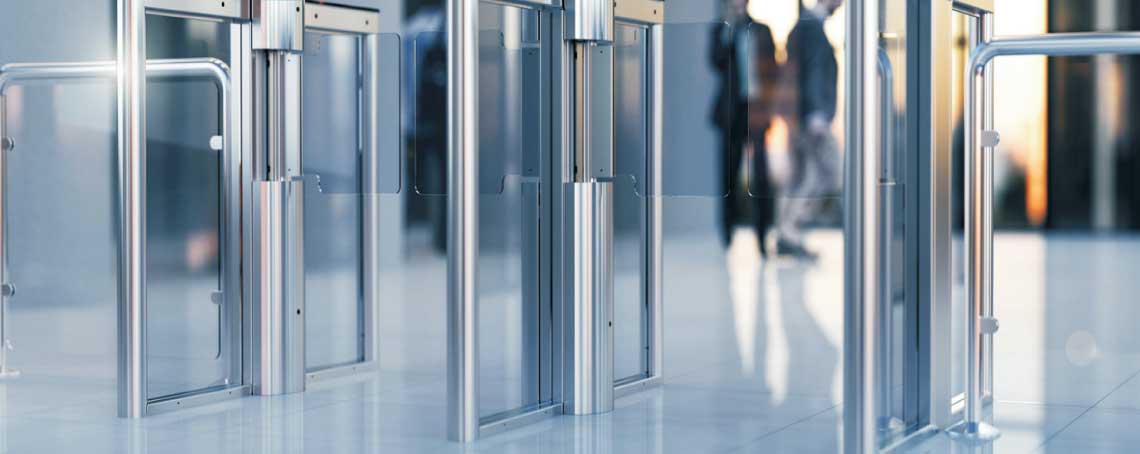

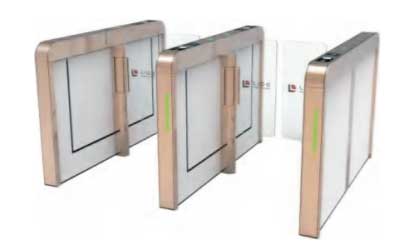

Revolutionizing the security industry, the speed gate is the slimmest, most intuitive swing barrier gate available in the market. Int speed gate are simple designed but with aesthetic feeling product. Its straight line, round contoured edges and free use of transparent clear acrylic or glass. It provides a significant and enjoyable view to the lobby of high-end office buildings. Thanks to the minimalist industrial design, the size of the product chassis has reached an astonishing 100-120mm width, extremely narrow and slender design, small footprint, speed gate turnstile can be used in high-end office building where every inch is premium.
![]() |
|
| Module No | INT-S701 |
| Size | 1400x120x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S702 |
| Size | 1400x120x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S703 |
| Size | 1500x120x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S704 |
| Size | 1400x120x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S705 |
| Size | 1500x130x980mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900 mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5 mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S706 |
| Size | 1500x160x1015mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600 mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V brushless motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S707 |
| Size | 3000x150x1100mm |
| Material | 304 stainless steel, tempered glass, acrylic |
| Access width | 600mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | DC 24V Brushless motor |
| Passing speed | 30 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 9 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
![]() |
|
| Module No | INT-S708 |
| Size | 1550x120x1000mm |
| Material | Aluminium, tempered glass, acrylic |
| Access width | 600mm (Maximum 900mm) |
| Input voltage | 100V ~ 240V |
| Drive motor | Servo motor |
| Passing speed | 35-40 people / minute |
| Applicable temperature | -20~700 C |
| Life time | 11 million times |
| The material thickness | 1.5mm |
| Access direction | Single / Bi-directional |
